Zhengzhou Xinguang Mining Machinery Manufacturing Co., Ltd.

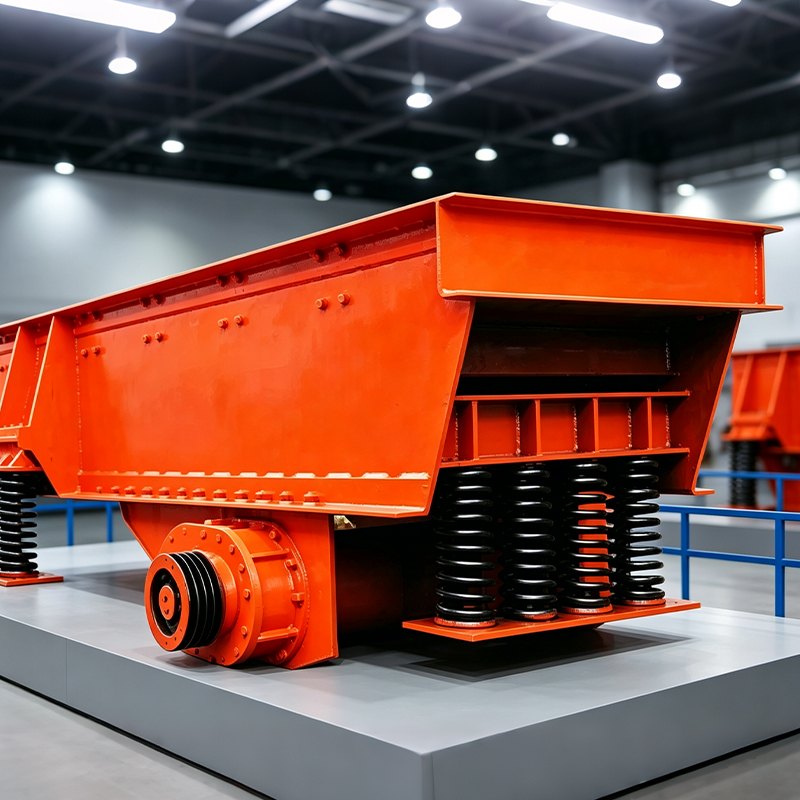

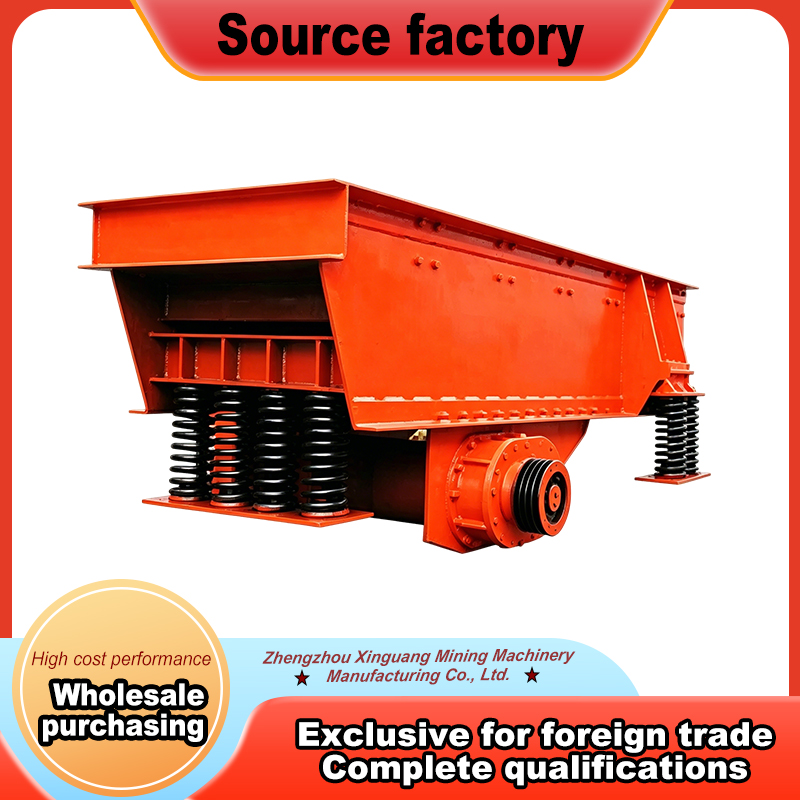

Modèle: XG-27
Core Function: Uniform, timed and continuous feeding of lump & granular material from silo; realize material screening‑grading during feeding
Structural Options: Vibrating‑motor as excitation source; adjustable exciting force to control flow rate; no material surging
Working Principle: Motor drives exciter eccentric block via V‑belt; centrifugal force drives circular motion of screen box; material parabolic tossing; fine particles pass deck opening for grading
Applicable Industries: Mining, building‑material, transportation, energy, chemical, mineral‑dressing; match combined crushing‑screening production lines
| Item | Specification | Localization Adaptation Note for Overseas B‑Buyers |
|---|---|---|
| Max Feed Particle Size | 300‑1050 mm | Handles large lump ore from mine hopper; well‑suited for primary crushing station across global mining sites |
| Processing Capacity | 80‑1000 t/h | Broad throughput scope, fits mid‑size quarry up to large‑scale Mineral Processing concentrator |
| Core Function | Continuously, evenly and timely deliver lump & granular materials from silo to receiving equipment; perform pre‑grading while feeding for crushing‑screening circuit | Essential front‑end unit for mineral‑dressing, building‑material, silicate and chemical production lines |
| Driving & Working Principle | Motor drives exciter eccentric block via V‑belt for high‑speed rotation; centrifugal force generates circular‑amplitude vibration for trough; materials get continuous parabolic tossing motion; fine particles pass through deck openings for grading | Vibrating‑motor exciter source; adjustable exciting force to modify material flow rate without material surging |
| Structural & Performance Features | Stable vibration, reliable operation, long service life; low noise & low power consumption; simple‑compact structure, easy installation & maintenance | Optional fully‑enclosed body design to suppress dust emission for high‑pollution sites |
| Applicable Industries | Mining, building materials, transportation, energy, chemical industry for material sizing & feeding | Adapt to diverse regional raw‑ore conditions and local industrial standards |
| Custom Options | Exciting‑force setting, enclosed/open‑type body configuration | Motor voltage configurable for local grid; technical confirmation required before order placement |
| Target B‑End Buyer Type | Local Real‑World Pain Points | Newbase Product Quantified Advantages & Selling Points |
|---|---|---|
| Hard‑rock quarry investor (Southeast Asia) | Unregulated material surging leads to jaw crusher frequent overloading and idling; no pre‑grading function, fine soil enters crushing chamber and accelerates liner abrasion | Our Vibrating Feeder for Quarry integrates feeding and pre‑grading; typical reference: crusher liner wear reduced 15‑21%; feeding‑flow fluctuation cut 13‑17%; eliminate material surging |
| Large‑scale mineral concentrator operator (Africa & Latin‑America) | Traditional feeding devices cannot process 300‑1050 mm big lump ore; frequent silo bridging causes unplanned halt, raising overall production loss | This Heavy Duty Mining Vibrating Feeder is engineered for large lump feedstock; typical reference: blockage‑related downtime reduced 62‑72%; adjustable exciting force adapts to variable ore conditions |
| Chemical & building‑material processing plant owner | Open‑type feeding creates heavy dust pollution on‑site; old‑style feeders require frequent manual flow adjustment, heavy labor cost | Our Mining ore feeding vibrating machine supports optional enclosed dust‑proof housing; reference test: on‑site dust leakage lowered significantly; remote adjustable exciting‑force reduces manual intervention workload |
| Mining EPC & complete‑set Equipment importer | Need heavy‑duty feeding‑grading unit for turn‑key tender projects; lack complete English technical documents for site commissioning | Wide 80‑1000 t/h capacity coverage; deliver English O&M manual and assembly drawings; easy integration for full‑scope Mining Solutions with crushers & vibrating screens |
R : Le type ouvert est rentable pour les tâches régulières d'alimentation et de nivellement des carrières ; la version entièrement fermée supprime les fuites de poussière pour les ateliers très poussiéreux. Envoyez votre description de l'état de fonctionnement et les paramètres du minerai, nos spécialistes vous fourniront des suggestions ciblées pour votre alimentateur vibrant minier robuste.
R : Il peut fonctionner de manière autonome pour le déchargement des silos et le pré-classement des matériaux. Si vous avez besoin de solutions minières complètes, nous pouvons configurer un concasseur à mâchoires/à cône et un crible vibrant adaptés en fonction de votre débit cible.
Recherchez-vous des machines durables de haute qualité pour l'alimentation continue de minerais lourds en morceaux et le pré-classement, afin de stabiliser le fonctionnement du concasseur, de réduire la consommation de pièces d'usure et de réduire les temps d'arrêt imprévus ?
Je m'appelle Melissa, directrice des exportations chez Newbase avec 10 ans d'expérience dans les projets miniers mondiaux. Veuillez partager votre taille maximale d'aliment en morceaux, votre capacité horaire cible, la dimension du silo ou les goulots d'étranglement de l'usine existante. Nos ingénieurs en traitement des minéraux vous répondront dans les 24 heures ouvrables avec une proposition de configuration et un devis personnalisés.
